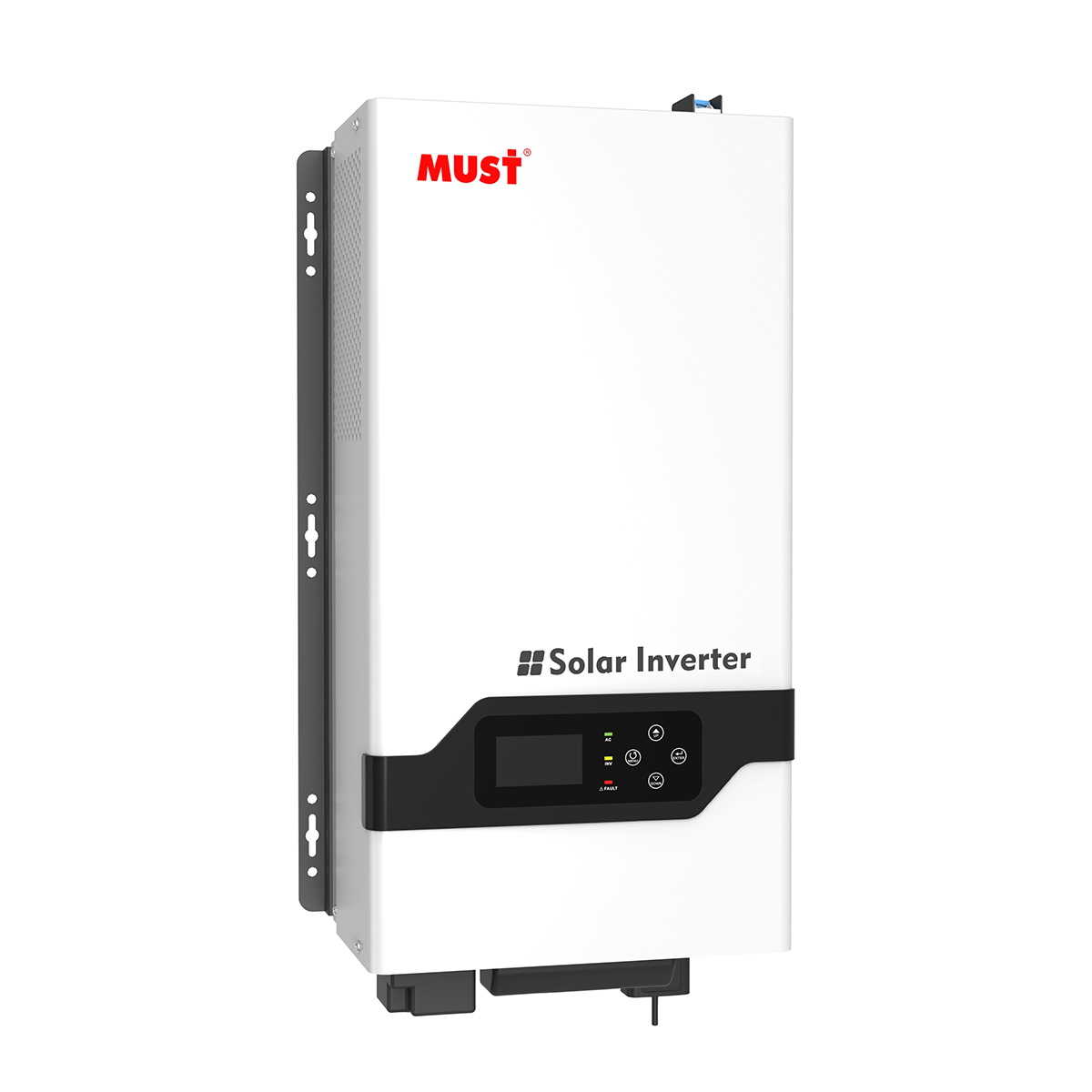

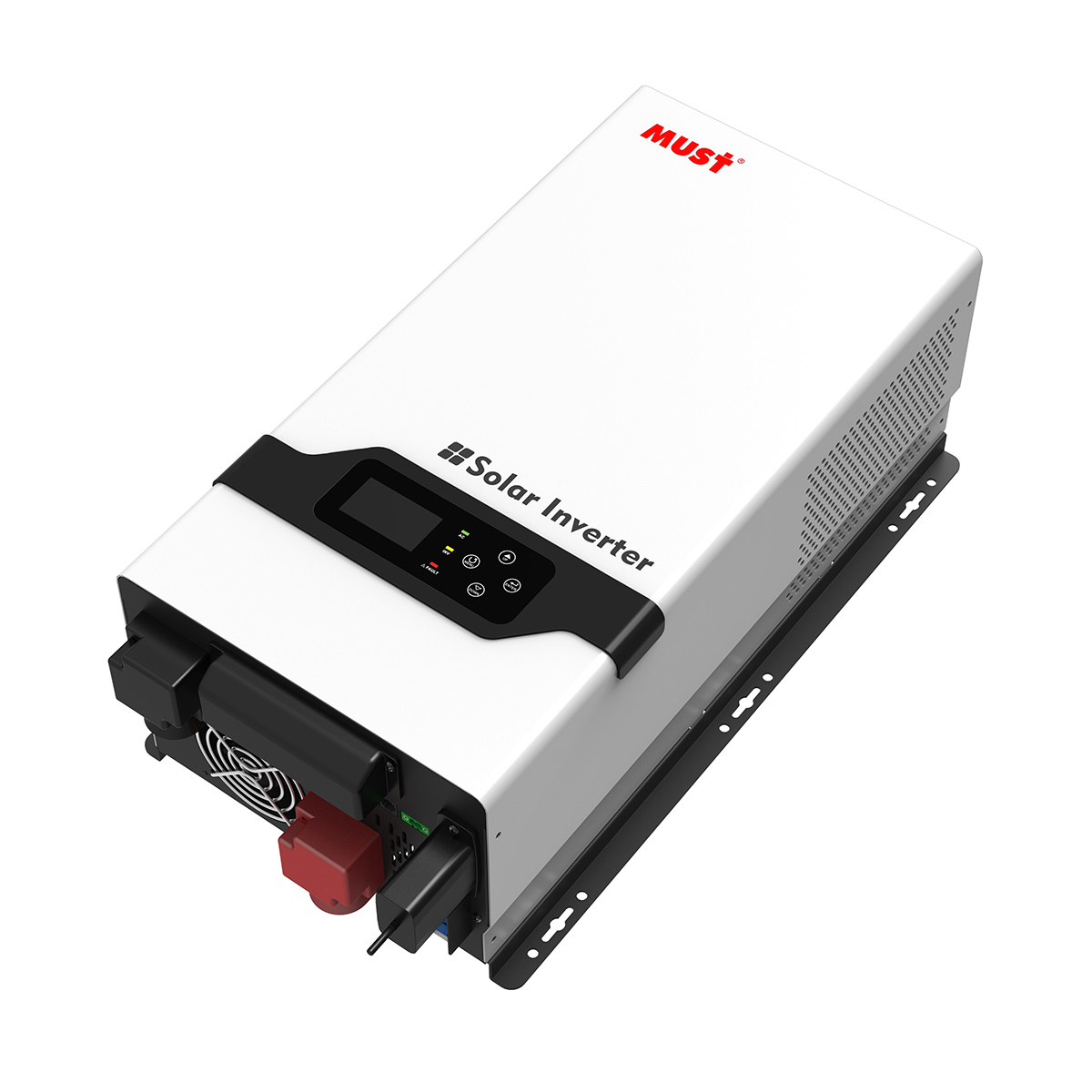

■ Carga en 3 pasos
■ Protección contra sobrecarga y cortocircuito
■ Establecer el voltaje de carga/corriente de carga
■ El punto de apagado por bajo voltaje de la batería se puede configurar en 10/10,5/11/11,5/12 V
■ Modo de ahorro de energía
■ Establecer prioridad de utilidad/prioridad de batería
■ Establecer un rango de voltaje amplio/estrecho de entrada de la red pública
■ El voltaje del inversor se puede configurar a 220 V/230 V/240 V
■ La frecuencia del inversor se puede configurar a 50 Hz/60 Hz
■ Configure el interruptor de encendido/apagado de carga de servicios públicos
■ Controlador de carga solar MPPT de 80 A incorporado
■ Seleccionar ácido o litio
■ Monitoreo remoto WIFI (opcional)
■ Con función de comunicación de batería de litio BMS (puerto CAN)

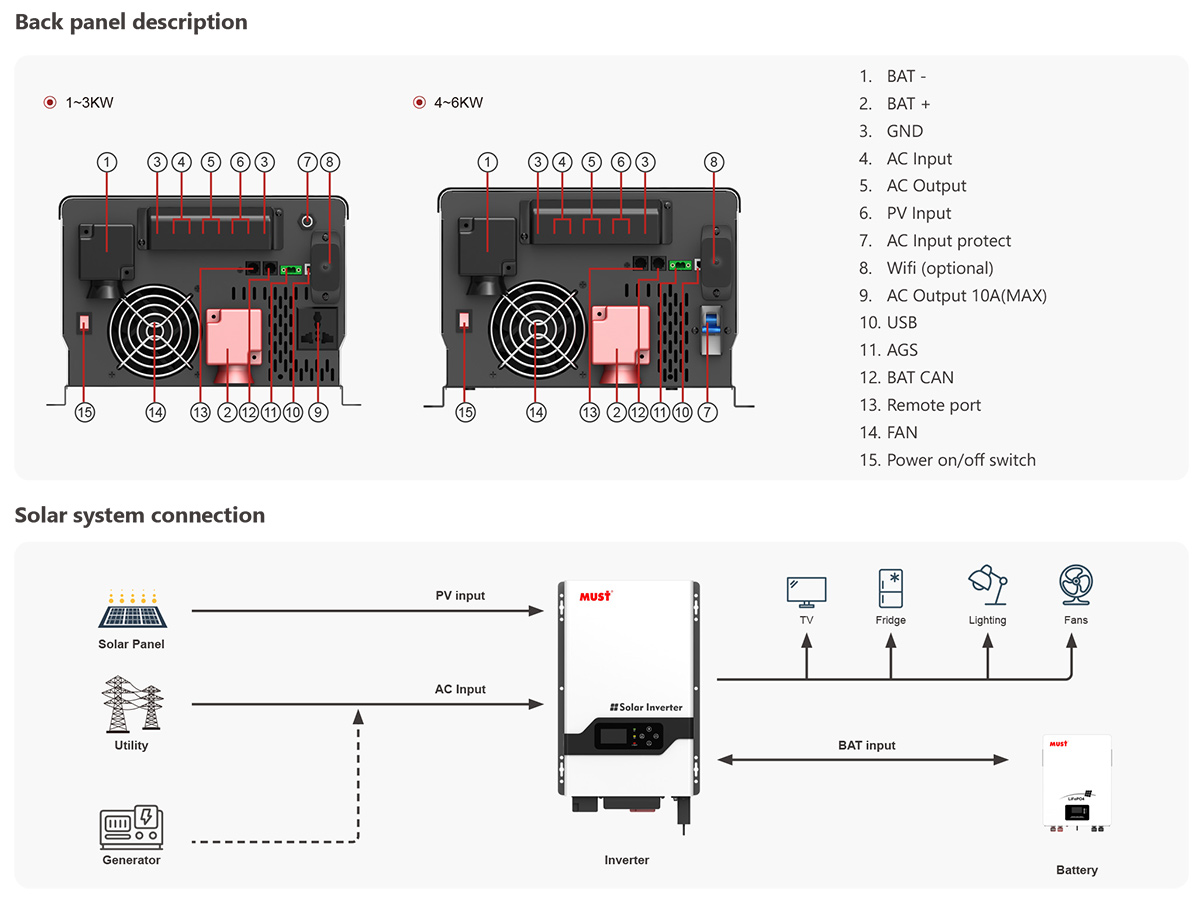

| MODELO | PV30-1KW VHM | PV30-1,5KW VHM | PV30-2KW VHM | PV30-3KW VHM | ||||
| Voltaje nominal del sistema de batería | 12 V CC | 24 V CC | 12 V CC | 24 V CC | 12 V CC | 24 V CC | 24 V CC | 48 V CC |
| SALIDA DEL INVERSOR | ||||||||
| Potencia nominal | 1 kilovatio | 1,5 KW | 2 kilovatios | 3 kilovatios | ||||
| Clasificación de sobretensión | 3000 VA | 4500 VA | 6000 VA | 9000 VA | ||||
| Capaz de arrancar un motor eléctrico | 1 CV | 1 CV | 1 CV | 2 caballos de fuerza | ||||
| Forma de onda | Onda sinusoidal pura / igual que la entrada (modo bypass) | |||||||
| Voltaje de salida nominal RMS | 220 V/230 V/240 V CA (±10 % RMS) | |||||||
| Frecuencia de salida | 50 Hz/60 Hz ±0,3 Hz | |||||||
| Eficiencia del inversor (máxima) | >88% | |||||||
| Eficiencia del modo de línea | >95% | |||||||
| Factor de potencia | 1.0 | |||||||
| Tiempo de transferencia típico | 10 ms (máximo) | |||||||
| Sobrecarga | 100% < Carga < 110% (alarma 5 min, luego se detiene la salida y código de falla 07) 110% < Carga < 125% (alarma 60 s, luego se detiene la salida y código de falla 07) Carga > 125% (alarma 10 s, luego se detiene la salida y código de falla 07) | |||||||
| ENTRADA DE CA | ||||||||
| Voltaje | 230 V CA | |||||||
| Rango de voltaje seleccionable | 155~265 V CA (para computadoras personales) | |||||||
| Rango de frecuencia | 50 Hz/60 Hz (detección automática) 40 ~ 80 Hz | |||||||
| BATERÍA | ||||||||
| Voltaje mínimo de arranque | (10 V / 10,5 V / 11 V / 11,5 V / 12 V) + 0,5 V para modo 12 V CC (*2 para 24 V CC, *4 para 48 V CC) | |||||||
| Alarma de batería baja | (10 V / 10,5 V / 11 V / 11,5 V / 12 V) + 0,5 V para modo 12 V CC (*2 para 24 V CC, *4 para 48 V CC) | |||||||
| Corte por batería baja | 10 V / 10,5 V / 11 V / 11,5 V / 12 V para modo 12 V CC (*2 para 24 V CC, *4 para 48 V CC) | |||||||
| Alarma de alto voltaje | (12-14,5 V) +1 V para modo 12 V CC (*2 para 24 V CC, *4 para 48 V CC) | |||||||
| Recuperación de voltaje alto de batería | (12-14.5V)+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||
Idle Consumption-Search Mode | Load ≤50±20W(120V)/100±20W(220V) | |||||||
| CHARGER | ||||||||
| Output Voltage | Depends on battery type | |||||||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC mode, *4 for 48VDC mode) | |||||||
| Maximum Charge Current | 30A | 20A | 45A | 25A | 60A | 30A | 40A | 20A |
| PAYPASS & PROTECTION | ||||||||
| Input Voltage Waveform | Sine wave (grid or generator) | |||||||
| Nominal Input Frequency | 50Hz or 60Hz | |||||||
| Overload Protection (SMPS Load) | Circuit breaker | |||||||
| Output Short Circuit Protection | Circuit breaker | |||||||
| AC Input Breaker | 1-3K/30A | |||||||
| SOLAR CHARGER | ||||||||
| Maximum PV Array Power | 1250W | 2500W | 1250W | 2500W | 1250W | 2500W | 2500W | 5000W |
| Maximum PV Charge Current | 80A±4A | |||||||
| DC Voltage | 12V/ 24V auto work | |||||||
| MPPT Range @ Operating Voltage | 15~95VDC @ 12V/ 30~230VDC @ 24V | |||||||
| Maximum PV Array Open Circuit Voltage | 245VDC | |||||||
| Standby Power Consumption | <2W | |||||||
| MECHANICAL SPECIFICATIONS | ||||||||
| Mounting | Wall Mount | |||||||
| Dimensions (W*H*D) | 493*303*200mm | |||||||
| Package Dimensions (W*H*D) | 615*400*319mm | |||||||
| OTHER | ||||||||
| Operation Temperature Range | 0℃ to 40℃ | |||||||
| Storage Temperature | -15℃ to 60℃ | |||||||
| Audible Noise | 60dB MAX | |||||||
| Display | LED+LCD | |||||||
| Standard Warranty | 1 year | |||||||
| CERTIFICATION & STANDARDS | ||||||||
| CE-EMC+LVD (EN6100-6-3:2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011) | ||||||||
| MODEL | PV30-4KW VHM | PV30-5KW VHM | PV30-6KW VHM | |
| Nominal Battery System Voltage | 24VDC | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | ||||
| Rated Power | 4 KW | 5 KW | 6 KW | |
| Surge Rating | 12000VA | 15000VA | 18000VA | |
| Capable Of Starting Electric Motor | 2HP | 3HP | ||
| Waveform | Pure sine wave / same as input (bypass mode) | |||
| Nominal Output Voltage RMS | 220V / 230V / 240VAC (±10% RMS) | |||
| Output Frequency | 50Hz / 60Hz ±0.3Hz | |||
| Inverter Efficiency (Peak) | >88% | |||
| Line Mode Efficiency | >95% | |||
| Power Factor | 1.0 | |||
| Typical Transfer Time | 10ms(max) | |||
| Overload | 100% < Load < 110% (alarm 5min then stop output and fault code 07) 110% < Load < 125% (alarm 60s then stop output and fault code 07) Load > 125% (alarm 10s then stop output and fault code 07) | |||
| AC INPUT | ||||
| Voltage | 230VAC | |||
| Selectable Voltage Range | 155~265VAC(For personal computers) | |||
| Frequency Range | 50Hz / 60Hz(Auto sensing) 40~80Hz | |||
| BATTERY | ||||
| Minimum Start Voltage | (10V / 10.5V / 11V / 11.5V/ 12V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||
| Low Battery Alarm | (10V / 10.5V / 11V / 11.5V/ 12V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||
| Low Battery Cut Off | 10V / 10.5V / 11V / 11.5V/ 12V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||
| High Voltage Alarm | (12-14.5V)+1V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||
| High Battery Voltage Recover | (12-14.5V)+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||
Idle Consumption-Search Mode | Load ≤50±20W(120V)/100±20W(220V) | |||
| CHARGER | ||||
| Output Voltage | Depends on battery type | |||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC mode, *4 for 48VDC mode) | |||
| Maximum Charge Current | 60A | 30A | 35A | 40A |
| PAYPASS & PROTECTION | ||||
| Input Voltage Waveform | Sine wave (grid or generator) | |||
| Nominal Input Frequency | 50Hz or 60Hz | |||
| Overload Protection (SMPS Load) | Circuit breaker | |||
| Output Short Circuit Protection | Circuit breaker | |||
| AC Input Breaker | 4-6K/50A | |||
| SOLAR CHARGER | ||||
| Maximum PV Array Power | 2500W | 5000W | 5000W | 5000W |
| Maximum PV Charge Current | 80A±4A | |||
| DC Voltage | 24V/ 48V auto work | |||
| MPPT Range @ Operating Voltage | 30~230VDC @ 24V/ 60~230VDC @ 48V | |||
| Maximum PV Array Open Circuit Voltage | 245VDC | |||
| Standby Power Consumption | <2W | |||
| MECHANICAL SPECIFICATIONS | ||||
| Mounting | Wall Mount | |||
| Dimensions (W*H*D) | 531*305*202mm | |||
| Package Dimensions (W*H*D) | 686*400*319mm | |||
| OTHER | ||||
| Operation Temperature Range | 0℃ to 40℃ | |||
| Storage Temperature | -15℃ to 60℃ | |||
| Audible Noise | 60dB MAX | |||
| Display | LED+LCD | |||
| Standard Warranty | 1 year | |||
| CERTIFICATION & STANDARDS | ||||
| CE-EMC+LVD (EN6100-6-3:2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011) | ||||
